Babbini's core business

From sugar beet pulp to tails, from beet leaves to fine pulp…

Babbini means presses for sugar factories

PRESSES FOR THE SUGAR INDUSTRY

Babbini permanently marked the most important stages of pressing development: presses able to achieve a dry substance content up to more than 34%, biconical press, second flight, vertical double screw press, pulp remixing system, spindles perforated plates with unperforated bands – the ultimate solution to the problem of perforated spindles reliability – are all Babbini’s innovations. Babbini’s patents allowed a higher mechanical strength, an increase in performances, in particular an increase in the dry substance content. Babbini is also the only company in the world able to manufacture both vertical and horizontal double screw presses, with a capacity from 1000 to 6000 t of beets/day.

Not only sugar beet pulp...

Babbini double screw presses also give optimum results in pressing other byproducts in the sugar field: beet tails, beet leaves and fine pulp.

Datasheets

PRESSES RANGE FOR THE SUGAR INDUSTRY

Here below the tables showing the dimensions of Babbini presses intended for pressing sugar beet pulp, beet tails, beet leaves and fine pulp.

RANGE OF BABBINI PRESSES FOR SUGAR BEET PULP AND THEIR DIMENSIONS.
.

Self draining spindles and Solid spindles

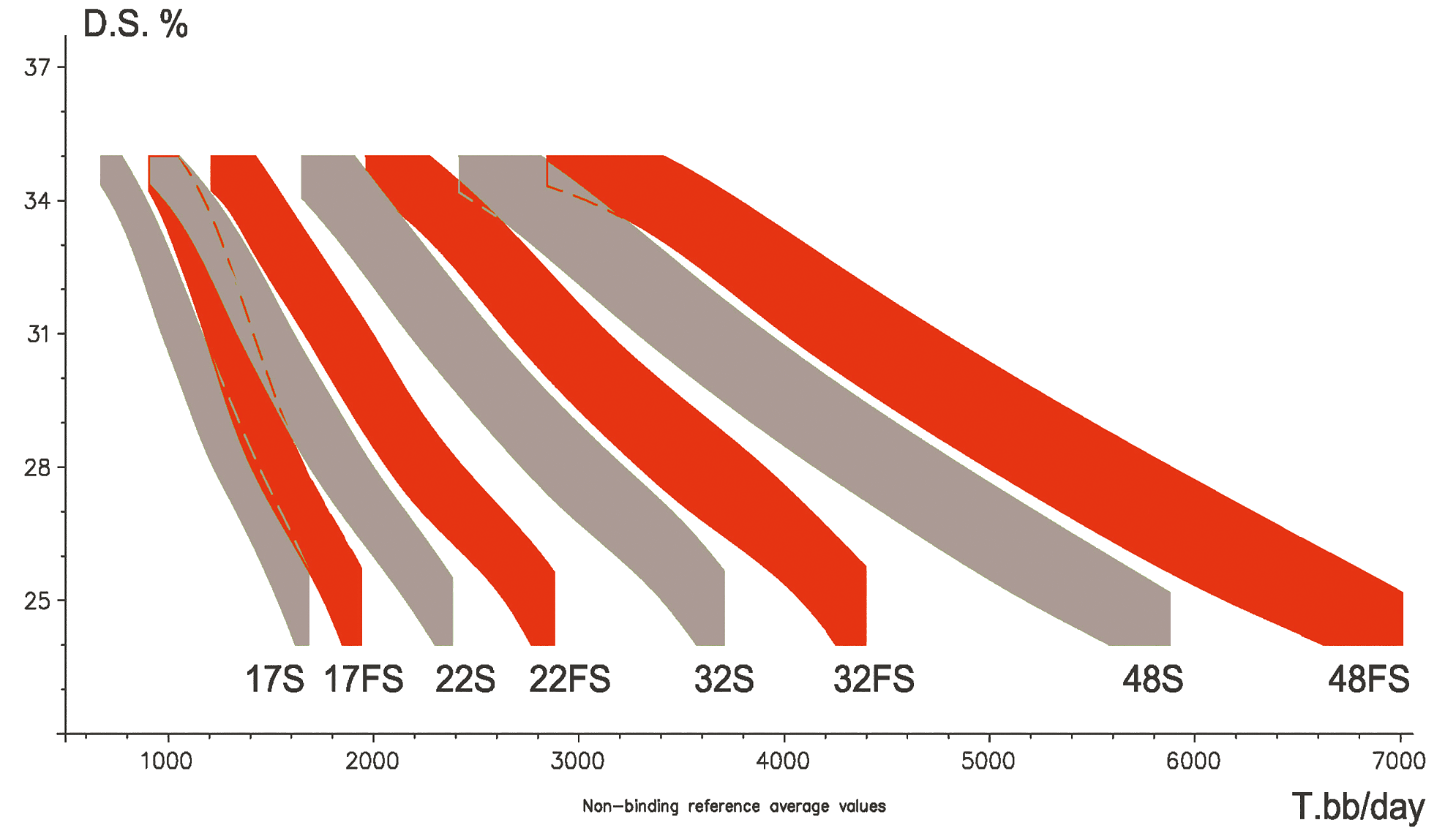

Performance diagram of sugar beet pulp presses type PB

Babbini double screw sugar beet pulp presses can be equipped either with self-draining spindles (presses type “F”, allowing a higher water draining from wet pulp) or with unperforated spindles.

The diagram shows the performances of the main Babbini presses for the sugar industry.

Please refer to the product codes indicated in the table below.

Press type	Dimensions (m)
PB15S	A: 7,90 - B: 2,10 - C: 2,25 - D: 5,85
PB15FS	A: 8,30 - B: 2,10 - C: 2,25 - D: 5,85
PB17S	A: 9,45 - B: 2,25 - C: 2,35 - D: 6,91
PB17FS	A: 9,85 - B: 2,25 - C: 2,35 - D: 6,91
PB22S	A: 11,00 - B: 2,50 - C: 2,66 - D: 8,40
PB22FS	A: 11,40 - B: 2,50 - C: 2,66 - D: 8,40
PB22SP	A: 11,00 - B: 2,60 - C: 2,76 - D: 8,40
PB22FSP	A: 11,40 - B: 2,60 - C: 2,76 - D: 8,40
PB32S	A: 13,80 - B: 2,90 - C: 3,00 - D: 10,78
PB32FS	A: 14,20 - B: 2,90 - C: 3,00 - D: 10,78
PB32SP	A: 13,80 - B: 3,00 - C: 3,10 - D: 10,78
PB32FSP	A: 14,20 - B: 3,00 - C: 3,10 - D: 10,78
PB48S	A: 14,20 - B: 3,70 - C: 3,95 - D: 10,67
PB48FS	A: 14,60 - B: 3,70 - C: 3,95 - D: 10,67
PB48SP	A: 14,20 - B: 3,70 - C: 3,95 - D: 10,67
PB48FSP	A: 14,60 - B: 3,70 - C: 3,95 - D: 10,67

legenda: S = Press with unperforated spindles - FS = Press with perforated spindles - P = Press equipped with uprated gearbox

RANGE OF BABBINI PRESSES FOR FINE PULP.
.

Press type	Dimensions (m)
P30BC	A: 3,25 - B: 1,00 - C: 1,30 - D: 1,95
P40BC	A: 4,15 - B: 1,20 - C: 1,40 - D: 2,80
P50BC	A: 4,75 - B: 1,43 - C: 1,50 - D: 3,22
P60BC	A: 5,95 - B: 1,80 - C: 1,80 - D: 4,18
